Secure Remote Desktop Services with SSO and Network-Level Authentication

Project Overview

The purpose of this project is to deploy a secure Remote Desktop Services (RDS) infrastructure with single sign-on (SSO), network-level authentication (NLA), and isolated user environments, allowing employees to connect securely to corporate desktops with session control and login integration.

🎯 Goal: Provide internal teams with secure remote access to company resources through RDP, while enforcing authentication, session isolation, and role-based access.

  • This project was implemented using Windows Server 2022, with clients running Windows 10 Pro.

  • All machines are joined to the domain entreprise.local.

  • VMware Workstation simulates the production environment.

  • Services include: Active Directory, DNS, GPO, and Remote Desktop Session Host (RDSH).

  • Sessions are limited by policy, with user isolation and automatic mapping of drives.

🧠 Supervision: Project validated under the guidance of Eric Mulumba Lukoji, Senior IT Architect with 15+ years of experience in Windows Server, identity federation, and remote access infrastructure.

Step 1 – Prepare the RDS Host Server

Goal: Create a clean server to host Remote Desktop sessions.

Actions:

  • Deploy a new VM named RDS01

  • Assign static IP: 192.168.10.20

  • Set DNS to 192.168.10.10

  • Join domain: entreprise.local

  • Rename server: RDS01

  • Enable Remote Desktop

Step 2 – Install Remote Desktop Session Host Role

Goal: Configure Windows Server to accept remote desktop sessions from users.

Actions:

  • On RDS01 ➜ Open Server Manager

  • Add Roles ➜ Install:

    • Remote Desktop Services

    • Remote Desktop Session Host

  • Restart server after installation

Step 3 – Configure Group Policy for NLA + SSO

Goal: Enforce secure authentication and seamless login.

Actions:

  • On DC01 ➜ Open Group Policy Management

  • Create GPO: GPO_RDS_Security

  • Scope: Apply to RDS01 only (security filtering)

Policy settings:

  • Computer Configuration ➜ Admin Templates ➜ System ➜ Credentials Delegation
    → Enable: Allow delegating saved credentials with NTLM-only server authentication
    → Add TERMSRV/*
    → Enable Allow delegating default credentials → TERMSRV/*

  • Computer Configuration ➜ Windows Components ➜ Remote Desktop Services ➜ Remote Desktop Session Host ➜ Security
    → Require use of NLA: Enabled
    → Always prompt for password: Disabled

Step 4 – Limit Session Time and Enforce Isolation

Goal: Set time limits and session rules for better resource management.

Actions:

  • Edit GPO_RDS_Security

  • Go to:
    Computer Configuration ➜ Admin Templates ➜ Windows Components ➜ Remote Desktop Services ➜ Remote Desktop Session Host ➜ Session Time Limits

Set:

  • End disconnected session after: 15 minutes

  • Active session limit: 1 hour

  • Disconnect idle session after: 30 minutes

Step 5 – Configure User Profile Isolation and Folder Mapping

Goal: Ensure each user has a unique environment + drive mapping on login.

Actions:

  • On RDS01, create user folder root in Powershell :

New-Item -Path "D:\Users" -ItemType Directory

  • Share the folder and set permissions to Domain Users

  • Edit GPO_RDS_Security:

    • User Configuration ➜ Admin Templates ➜ System ➜ User Profiles
      → Set Set roaming profile path for all users → \\RDS01\Users\%USERNAME%

  • Optional: Map shared drive on login:

bat

@echo off net use X: \\DC01\Shared

  • Add this script in User Configuration ➜ Windows Settings ➜ Scripts (Logon)

Step 6 – Test Remote Access with SSO and NLA

Goal: Validate secure remote login and session handling.

Actions:

  • From PC01, open mstsc

  • Connect to: RDS01.entreprise.local

  • Observe:

    • Login uses current credentials (SSO)

    • No password prompt

    • Session starts isolated

    • Session ends after timeout if idle

    • Drive X: mapped if configured

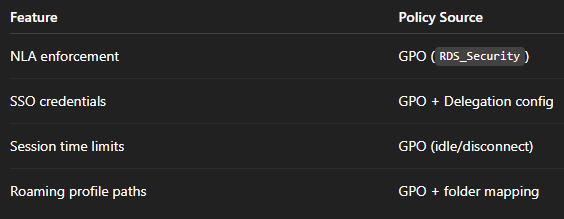

🔐 Security Policies Implemented

⚙ Automation Tips

  • Set static IP and join domain via PowerShell:

New-NetIPAddress -IPAddress 192.168.10.20 -PrefixLength 24 -DefaultGateway 192.168.10.1 Set-DnsClientServerAddress -InterfaceAlias "Ethernet" -ServerAddresses 192.168.10.10 Rename-Computer -NewName "RDS01" -Restart Add-Computer -DomainName entreprise.local -Credential entreprise\admin

  • Apply GPOs faster:

gpupdate /force

Conclusion

This project shows how to build a real-world Remote Desktop Services infrastructure with:

  • Single Sign-On (SSO)

  • Network Level Authentication (NLA)

  • Session isolation per user

  • Time-limited access and roaming profiles

It ensures remote access is secure, controlled, and ready for audits, following enterprise-grade practices for small organizations.
