Hybrid Azure AD Integration with Entra ID Synchronization

Project Overview

The purpose of this project is to connect an on-premises Active Directory domain to Microsoft Cloud (Entra ID) using Azure AD Connect, enabling hybrid identity synchronization and single sign-on (SSO) for modern cloud services.

🎯 Goal: Provide seamless access to Microsoft 365 and other Azure services using existing AD credentials, while maintaining centralized control of identities.

  • Infrastructure: Windows Server 2022 (DC01) with entreprise.local domain

  • Client PC: Windows 10 (PC01), joined to domain

  • Internet: Enabled (bridged or NAT mode in VMware)

  • Cloud Platform: Microsoft 365 Business + Azure Tenant with Global Admin access

  • Synchronization tool: Azure AD Connect

🧠 Supervision: This project was implemented under the guidance of Eric Mulumba Lukoji, Senior Enterprise Architect (15+ years in cloud infrastructure and identity systems).Lorem ipsum dolor sit amet, consectetur adipisicing elit. Autem dolore, alias, numquam enim ab voluptate id quam harum ducimus cupiditate similique quisquam et deserunt, recusandae.

Step 1 – Prepare the Azure Tenant

Goal: Ensure the cloud environment is ready to receive synced identities.

Actions:

  • Go to https://portal.azure.com

  • Create an Azure Active Directory tenant (if not already existing)

  • Add custom domain: entreprise.com

  • Verify domain (via TXT DNS record)

  • Assign a Global Administrator role

Step 2 – Prepare On-Premises Domain

Goal: Ensure local AD is properly structured and internet-ready.

Actions:

  • Ensure DC01 has internet access

  • Configure users with routable UPN suffix (e.g., user1@entreprise.com):

Set-UserPrincipalName -Identity user1 -UserPrincipalName user1@entreprise.com

  • Add suffix in AD Domains and Trusts ➜ UPN Suffixes: entreprise.com

Step 3 – Download and Install Azure AD Connect

Goal: Enable synchronization between on-prem and cloud.

Actions:

Step 4 – Configure Synchronization

Goal: Map and sync local identities to cloud.

Actions:

  • Sign in with Azure Global Admin credentials

  • Connect to local AD (entreprise.local)

  • Configure sync rules:

    • Select Staff OU only

    • Filter by groups if needed

  • Enable Password Hash Sync and optionally Seamless SSO

Step 5 – Force Initial Synchronization

Goal: Sync local users to Entra ID.

Actions:

powershell

Start-ADSyncSyncCycle -PolicyType Delta

  • Confirm users appear in Azure AD portal

Step 6 – Test Sign-In on Microsoft 365

Goal: Validate that users can access cloud services.

Actions:

Step 7 – Enable Hybrid Join (Optional)

Goal: Register domain-joined devices in Azure AD for conditional access.

Actions:

  • Use GPO to configure auto-enrollment:

Computer Configuration ➜ Policies ➜ Administrative Templates ➜ Windows Components ➜ Device Registration ➜ Enable automatic registration

  • Devices will appear in Azure AD ➜ Devices

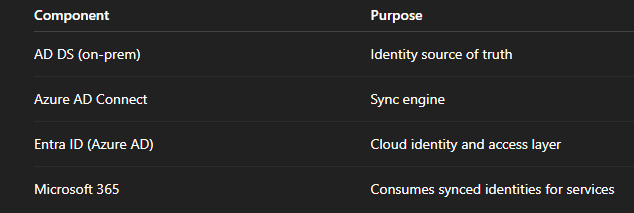

🔒 Hybrid Identity Flow Overview

⚙ Automation Tips

Tips

  • To monitor sync status in Powershell :

Get-ADSyncScheduler

  • To reset sync in Powershell :

Start-ADSyncSyncCycle -PolicyType Initial

  • To view sync errors in Powershell:

Get-ADSyncConnectorRunStatus

Conclusion

This project delivers a real hybrid identity solution used in many SMB and enterprise environments.
You’ve configured:

  • Azure AD Connect

  • UPN routing

  • Cloud sign-in with AD credentials

  • Optional hybrid device registration

This setup allows your local AD to manage all identities while still giving users access to modern cloud services like Microsoft 365, Teams, OneDrive, etc.
