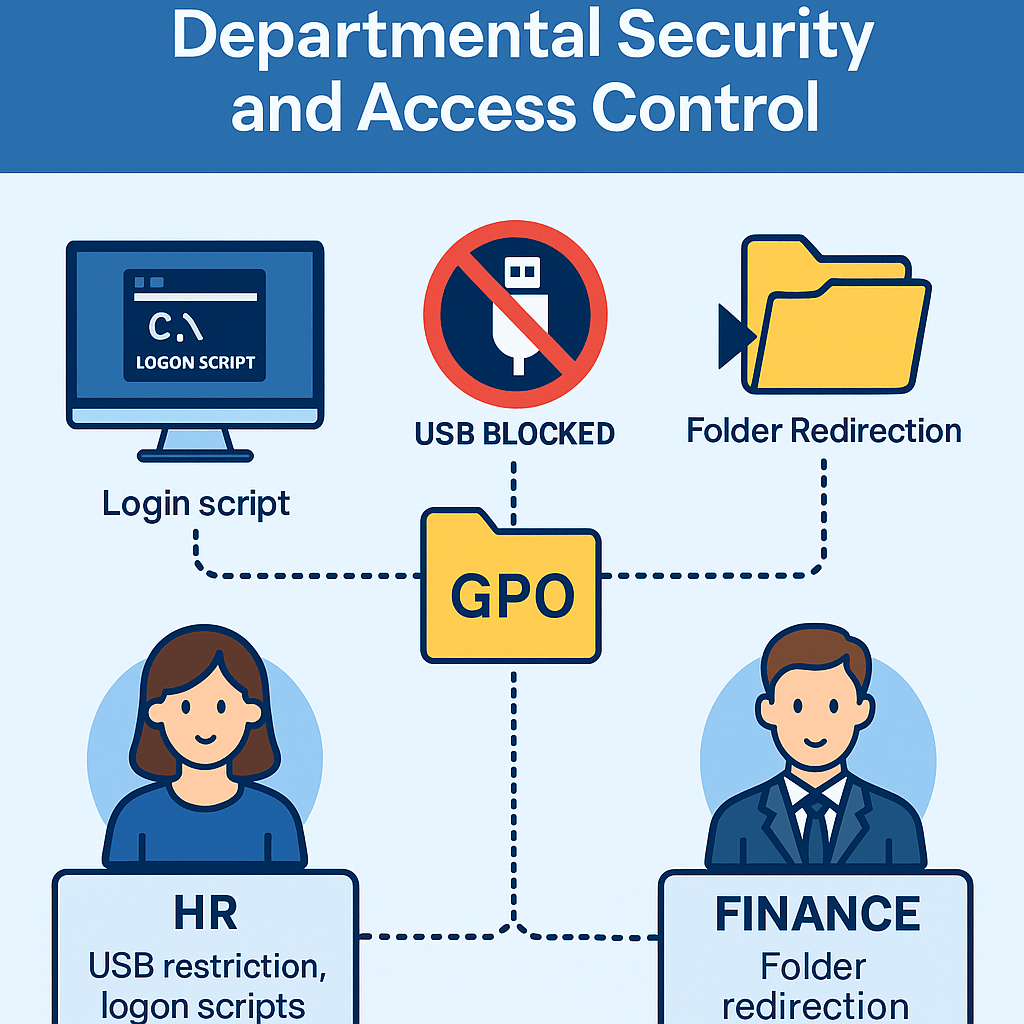

Advanced Group Policies for Departmental Security and Access Control

Project Overview

The purpose of this project was to implement fine-grained Group Policy Objects (GPOs) based on departments (e.g., HR, Finance), using Active Directory Organizational Units (OUs) and security filtering.

You will configure:

  • USB access restrictions

  • Login scripts

  • Folder redirection

  • GPO security scope per OU

🎯 Goal: Protect company resources, segment security by department, and automate user environment configuration via Group Policy.

  • This project continues from the domain entreprise.local created in Project 1.

  • Two departments will be simulated:

    • HR (Human Resources)

    • Finance

  • Users and computers will be placed in separate OUs.

  • VMware Workstation is used for virtualization.

Project Supervision & Mentorship

This project was completed under the mentorship and supervision of:

• Eric Mulumba – Senior IT Specialist with 15+ years of expertise in system architecture and enterprise security.

• Elie William Mbayabo – Technical Support Engineer at Check Point Software Technologies, with professional experience in network security and IT operations.

Working under their guidance allowed me to strengthen my technical skills, apply industry best practices, and deliver a solution that reflects real-world enterprise standards.

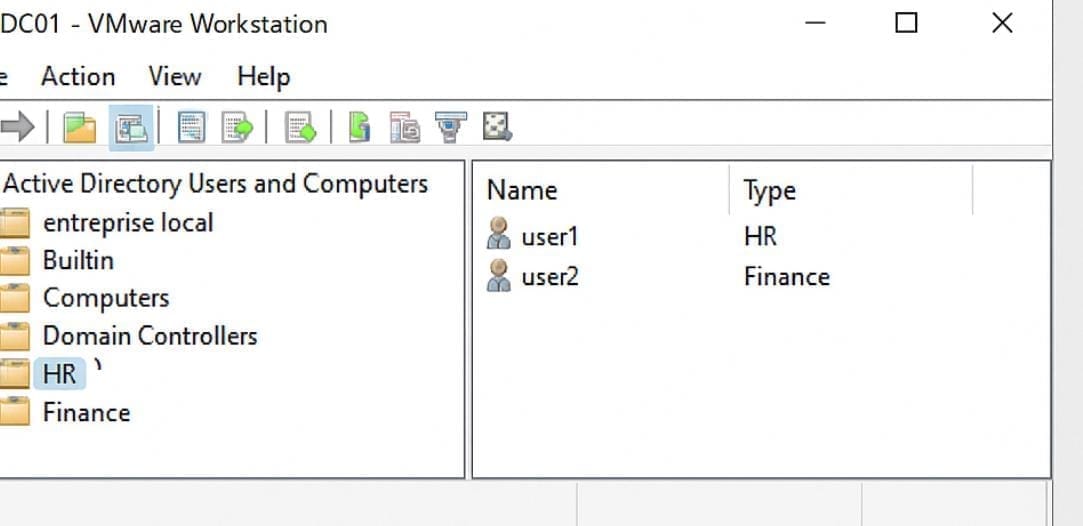

Step 1 – Create Departmental OUs

Goal: Organize users and computers by department.

Actions:

  • Open Active Directory Users and Computers (ADUC)

  • Create OUs:

    • OU=HR

    • OU=Finance

  • Move relevant users to each OU
    Example:

    • user1, user2 ➜ HR

    • user3, user4 ➜ Finance

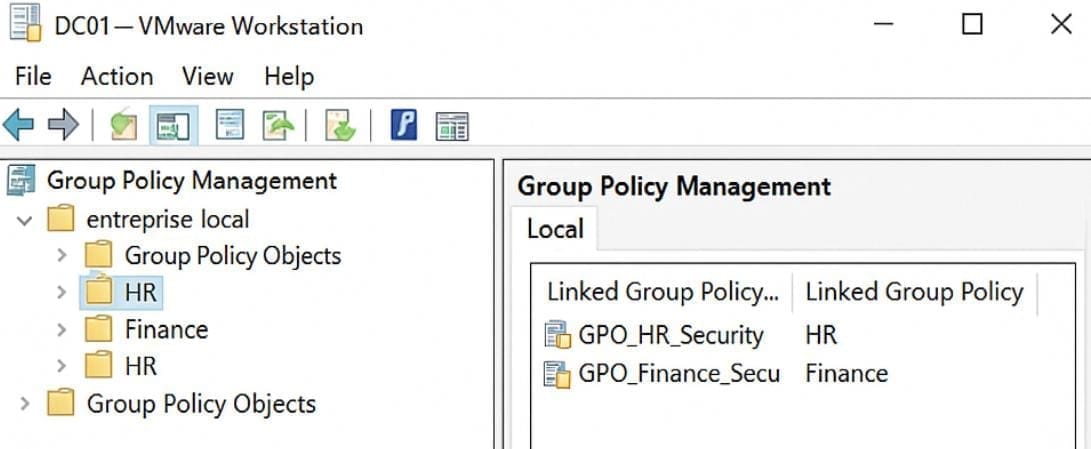

Step 2 – Create and Link Departmental GPOs

Goal: Apply specific rules to each department.

Actions:

  • Open Group Policy Management

  • Create 2 new GPOs:

    • GPO_HR_Security

    • GPO_Finance_Security

  • Link each GPO to its respective OU

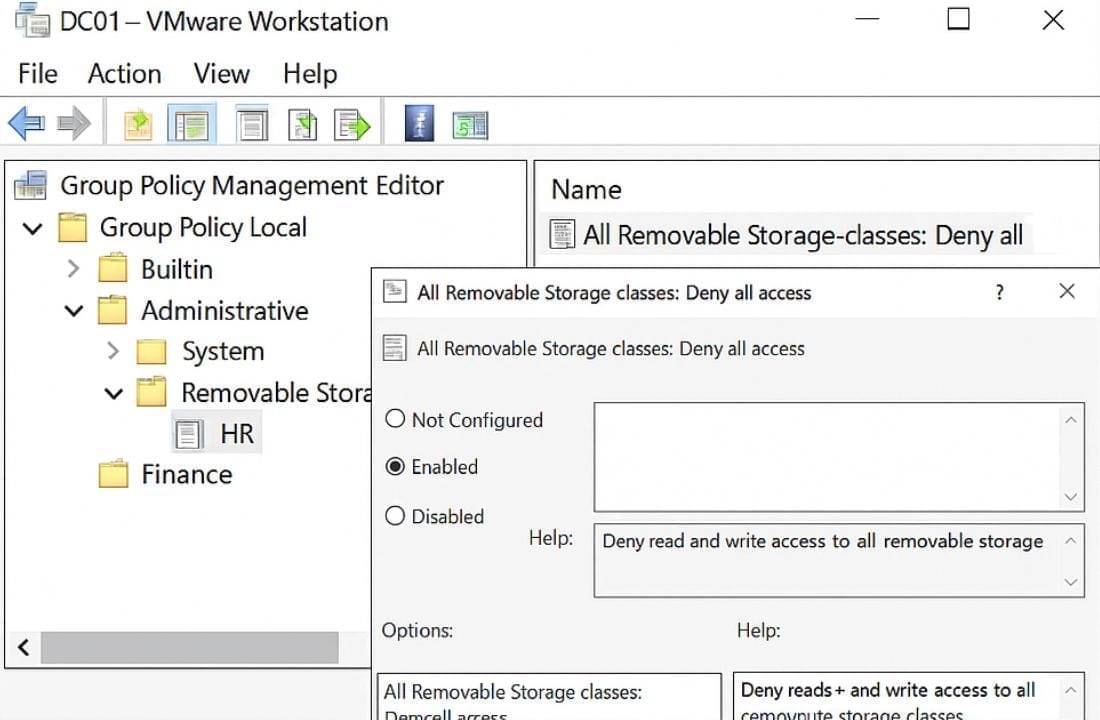

Step 3 – Configure GPO: HR (USB Restriction)

Goal: Block USB storage access for HR users.

Actions:

  • Edit GPO_HR_Security

  • Go to:
    Computer Configuration ➜ Policies ➜ Administrative Templates ➜ System ➜ Removable Storage Access

  • Enable:

    • All Removable Storage classes: Deny all access

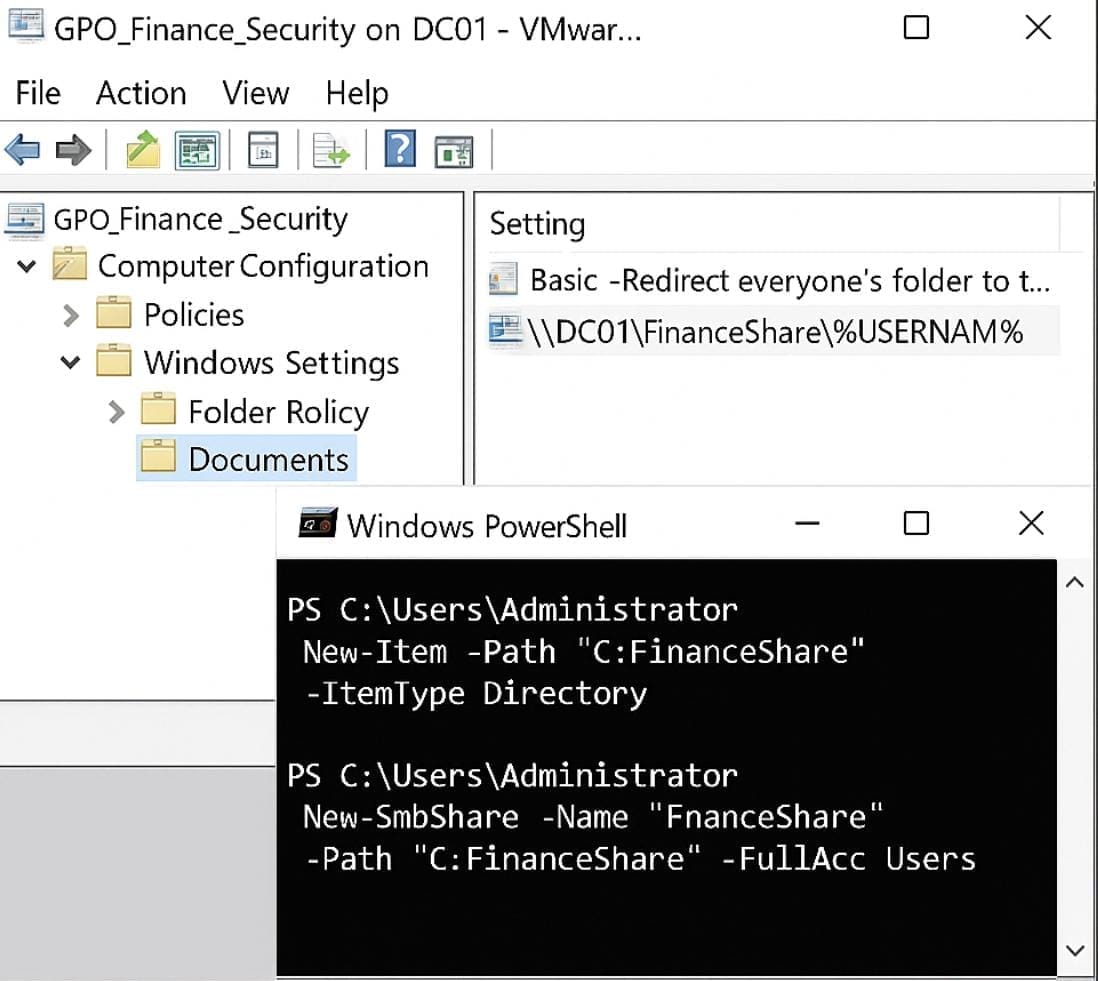

Step 4 – Configure GPO: Finance (Folder Redirection)

Goal: Redirect user documents to a network share.

Actions:

  • Edit GPO_Finance_Security

  • Go to:
    User Configuration ➜ Policies ➜ Windows Settings ➜ Folder Redirection ➜ Documents

  • Redirect to:
    \\DC01\FinanceShare\%USERNAME%

📝 Create and share the folder on DC01:

New-Item -Path "C:\FinanceShare" -ItemType Directory

New-SmbShare -Name "FinanceShare" -Path "C:\FinanceShare" -FullAccess "Finance Users"

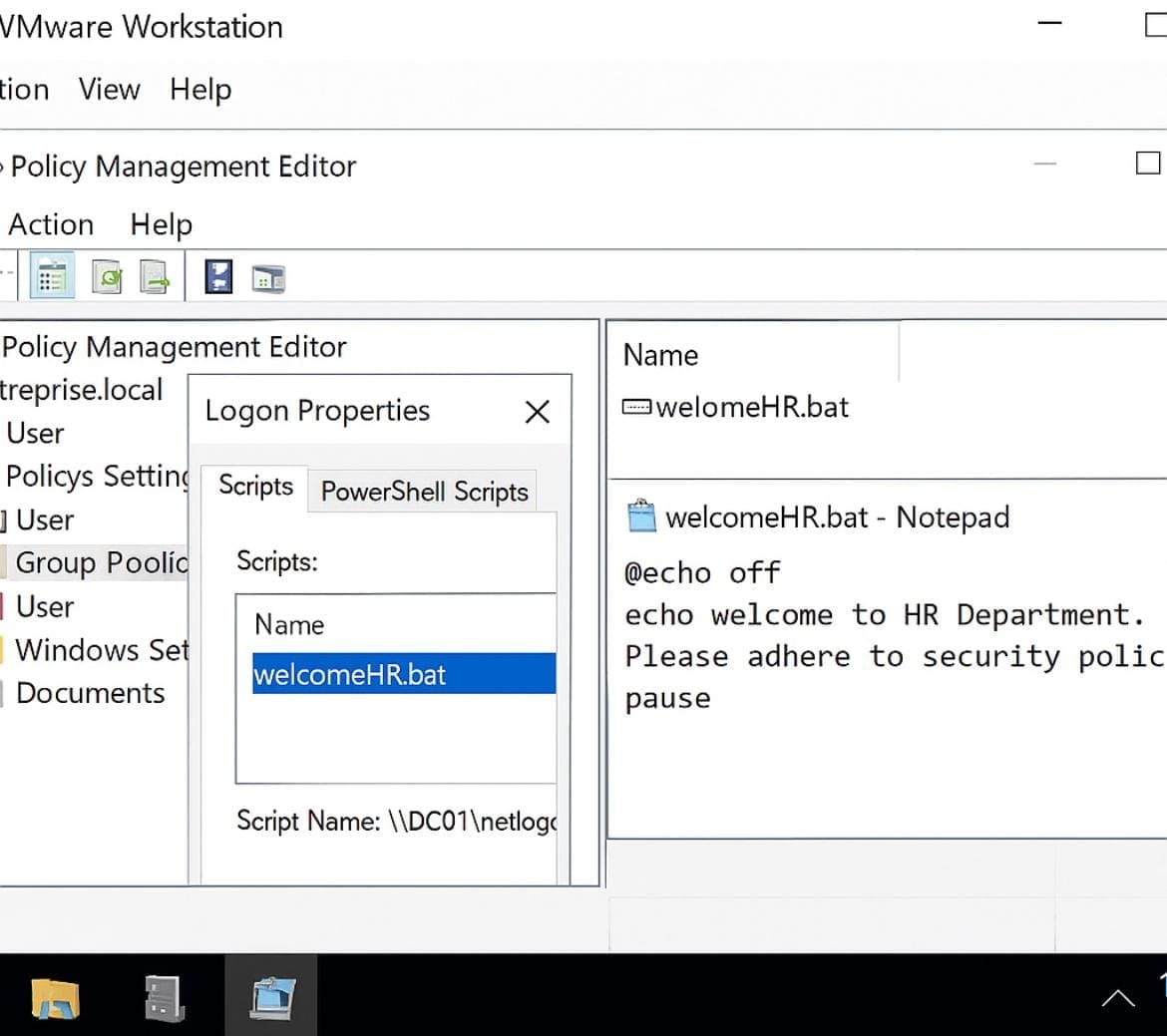

Step 5 – Create a Logon Script for HR

Goal: Display a custom welcome message at login.

Actions:

  • Create a script welcomeHR.bat:

bat

@echo off echo Welcome to HR Department. Please adhere to security policies. pause

  • Place the script in \\DC01\netlogon

  • Edit GPO_HR_Security ➜
    User Configuration ➜ Windows Settings ➜ Scripts (Logon/Logoff) ➜ Add script

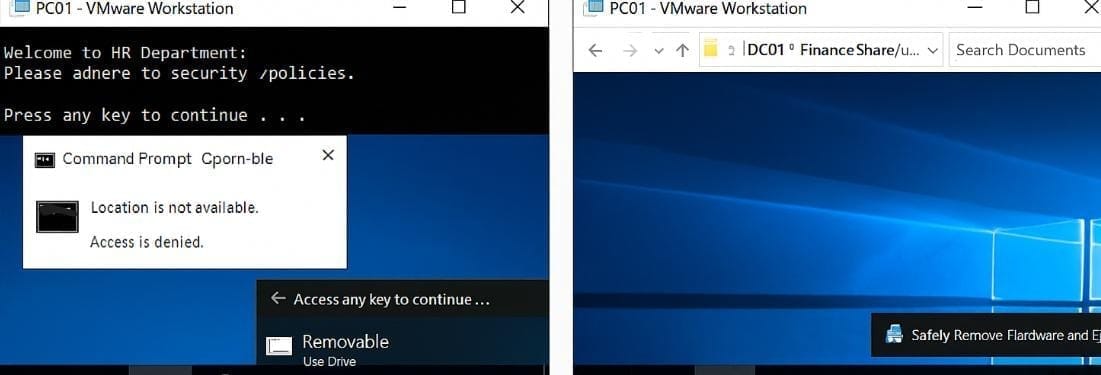

Step 6 – Test GPOs on Client VM

Goal: Validate that the right policies apply per department.

Actions:

  • Log in on PC01 as a user from HR (e.g., user1)

    • Verify USB devices are blocked

    • Welcome message displays at login

  • Log in as a Finance user (e.g., user3)

    • Documents folder is redirected to network share

    • USB still works (not blocked)

🔒Security Policies Applied

Department : HR & Finance GPO Rule : Deny USB access, show login script, Redirect Documents folder to share

⚙️ Automation Tips

  • You can use PowerShell to bulk move users:

Get-ADUser -Filter {Name -like "user*"} | Move-ADObject -TargetPath "OU=HR,DC=entreprise,DC=local"

  • Run gpupdate /force after GPO edits

Conclusion

This project demonstrates how to design department-level IT policies using GPO, enabling real-world security enforcement such as:

  • USB lockdown

  • Login-based automation

  • Redirection of sensitive files

  • Separation of concerns per OU

These are standard enterprise practices used by real system administrators in companies with centralized infrastructure.
