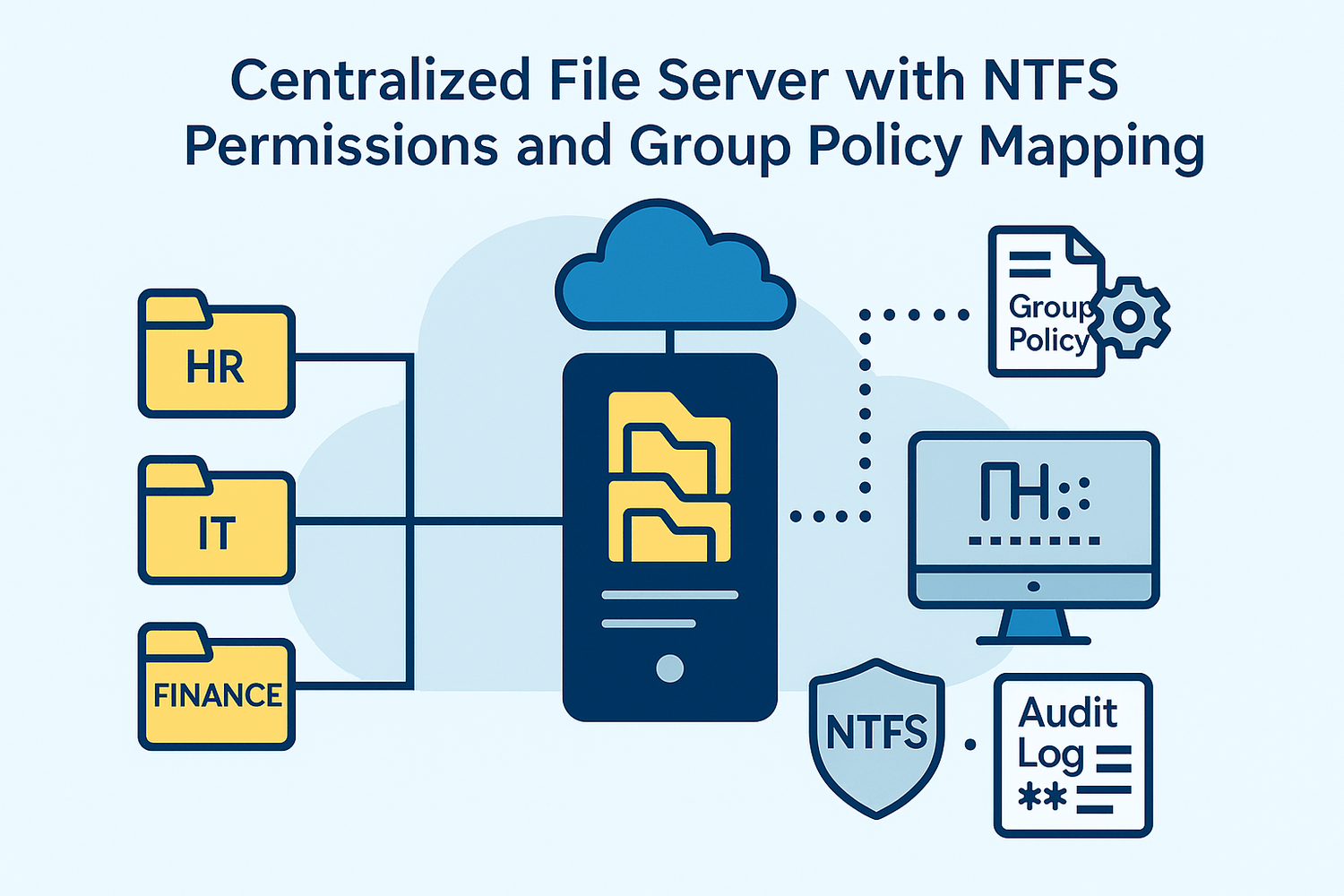

Centralized File Server with NTFS Permissions and Group Policy Mapping

Project Overview

The purpose of this project is to deploy a centralized file server with:

  • NTFS-based security

  • GPO-based drive mapping

  • Audit-ready access logs

🎯 Goal: Build a secure, department-based file-sharing infrastructure ready for real enterprise audits.

  • Continues from entreprise.local domain (Project 1)

  • Involves departments: HR, IT, Finance

  • Users placed in proper OUs

  • File server: FS01, a member of the domain

🧠 Supervision: Project completed under the guidance of Eric Mulumba Lukoji, Senior IT & Cloud Architect.

Step 1 – Deploy and Join File Server (FS01)

Goal: Create the Windows Server file server and join it to the domain.

Actions:

  • Deploy FS01 on VMware

  • Set static IP: 192.168.10.20

  • DNS: 192.168.10.10 (DC01)

  • Rename PC to FS01

  • Join domain: entreprise.local

Step 2 – Create Departmental Shared Folders

Goal: Set up folders for each department with correct NTFS permissions.

Actions:

On FS01:

  • 1. Create directories in PowerShell:

New-Item -Path "D:\SHARE\HR" -ItemType Directory New-Item -Path "D:\SHARE\IT" -ItemType Directory New-Item -Path "D:\SHARE\Finance" -ItemType Directory

2. Right-click D:\SHARE ➜ Share ➜ Everyone - Read

3. Set NTFS permissions (via Security tab):

  • HR folder: Allow Full Control to group HR

  • IT folder: Full Control to group IT

  • Finance: Full Control to group Finance

Step 3 – Create Security Groups in AD

Goal: Map users to security groups for permissions.

Actions:

In ADUC:

  • Create groups: HR, IT, Finance

  • Add users accordingly in PowerShell:

Add-ADGroupMember -Identity "HR" -Members user1, user2 Add-ADGroupMember -Identity "IT" -Members user3 Add-ADGroupMember -Identity "Finance" -Members user4

Step 4 – Map Drives via GPO

Goal: Automatically assign drive letters to users based on department.

Actions:

  • Open Group Policy Management

  • Create GPO: GPO_Drive_Mapping

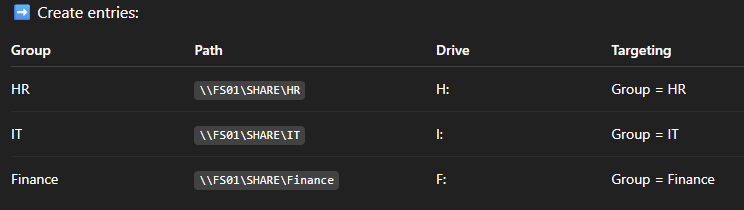

  • Edit GPO:

User Configuration ➜ Preferences ➜ Windows Settings ➜ Drive Maps

Enable item-level targeting → Security Group

4. Link the GPO to the Staff OU

Step 5 – Enable File Access Auditing

Goal: Log file access for compliance and audit.

Actions:

  • On FS01 ➜ Local Security Policy ➜ Audit Policy
    ➜ Enable: Audit Object Access (Success, Failure)

  • Folder Properties ➜ Security ➜ Advanced ➜ Auditing ➜ Add:

  • Principal: Everyone

  • Access: Read, Write

Step 6 – Test Access from Clients

Goal: Confirm correct drive mappings and permissions.

Actions:

  • Log in as user1 (HR) on PC01

    • Verify H: drive is auto-mapped

    • Try accessing IT or Finance folder ➜ should be denied

  • Log in as user4 (Finance)

    • F: mapped

    • Access limited to Finance folder

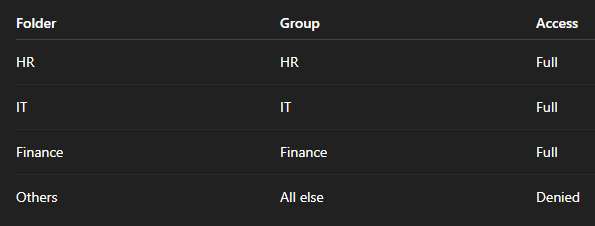

🛡️Security Matrix

⚙️ Automation Tips in PowerShell

  • To map folders in bulk :

New-SmbShare -Name "HR" -Path "D:\SHARE\HR" -FullAccess "HR"

  • Update policy on client:

gpupdate /force

  • View logs:

eventvwr ➜ Windows Logs ➜ Security ➜ Event ID 4663

Conclusion

This project demonstrates a real-world file server setup with:

✅ Group-based access
✅ GPO drive automation
✅ Enterprise-grade auditing

It shows foundational system administration skills aligned with corporate security policies.
